The Quantum Bit

The best place to start our journey through quantum computing is to recall how classical computing works and try to extend it. Since our final quantum computing model will be a circuit model, we should informally discuss circuits first.

A circuit has three parts: the “inputs,” which are bits (either zero or one); the “gates,” which represent the lowest-level computations we perform on bits; and the “wires,” which connect the outputs of gates to the inputs of other gates. Typically the gates have one or two input bits and one output bit, and they correspond to some logical operation like AND, NOT, or XOR.

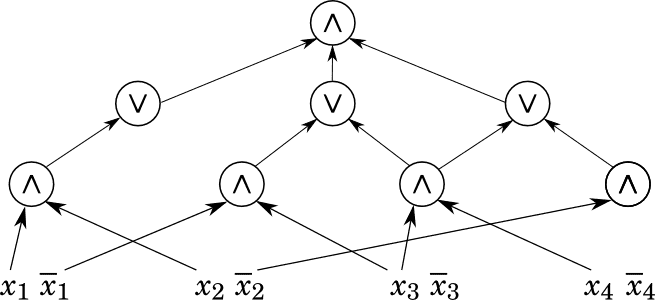

A simple example of a circuit.

A simple example of a circuit. The V’s are “OR” and the Λ’s are “AND.” Image source: Ryan O’Donnell

If we want to come up with a different model of computing, we could start regular circuits and generalize some or all of these pieces. Indeed, in our motivational post we saw a glimpse of a probabilistic model of computation, where instead of the inputs being bits they were probabilities in a probability distribution, and instead of the gates being simple boolean functions they were linear maps that preserved probability distributions (we called such a matrix “stochastic”).

Rather than go through that whole train of thought again let’s just jump into the definitions for the quantum setting. In case you missed last time, our goal is to avoid as much physics as possible and frame everything purely in terms of linear algebra.

Qubits are Unit Vectors

The generalization of a bit is simple: it’s a unit vector in \mathbb{C}^2. That is, our most atomic unit of data is a vector (a,b) with the constraints that a,b are complex numbers and |a|^2 + |b|^2 = 1. We call such a vector a qubit.

A qubit can assume “binary” values much like a regular bit, because you could pick two distinguished unit vectors, like (1,0) and (0,1), and call one “zero” and the other “one.” Obviously there are many more possible unit vectors, such as \frac{1}{\sqrt{2}}(1, 1) and (-i,0). But before we go romping about with what qubits can do, we need to understand how we can extract information from a qubit. The definitions we make here will motivate a lot of the rest of what we do, and is in my opinion one of the major hurdles to becoming comfortable with quantum computing.

A bittersweet fact of life is that bits are comforting. They can be zero or one, you can create them and change them and read them whenever you want without an existential crisis. The same is not true of qubits. This is a large part of what makes quantum computing so weird: you can’t just read the information in a qubit! Before we say why, notice that the coefficients in a qubit are complex numbers, so being able to read them exactly would potentially encode an infinite amount of information (in the infinite binary expansion)! Not only would this be an undesirably powerful property of a circuit, but physicists’ experiments tell us it’s not possible either.

So as we’ll see when we get to some algorithms, the main difficulty in getting useful quantum algorithms is not necessarily figuring out how to compute what you want to compute, it’s figuring out how to tease useful information out of the qubits that otherwise directly contain what you want. And the reason it’s so hard is that when you read a qubit, most of the information in the qubit is destroyed. And what you get to see is only a small piece of the information available. Here is the simplest example of that phenomenon, which is called the measurement in the computational basis.

Definition: Let v = (a,b) \in \mathbb{C}^2 be a qubit. Call the standard basis vectors e_0 = (1,0), e_1 = (0,1) the computational basis of \mathbb{C}^2. The process of measuring v in the computational basis consists of two parts.

  1. You observe (get as output) a random choice of e_0 or e_1. The probability of getting e_0 is |a|^2, and the probability of getting e_1 is |b|^2.
  2. As a side effect, the qubit v instantaneously becomes whatever state was observed in 1. This is often called a collapse of the waveform by physicists.

There are more sophisticated ways to measure, and more sophisticated ways to express the process of measurement, but we’ll cover those when we need them. For now this is it.

Why is this so painful? Because if you wanted to try to estimate the probabilities |a|^2 or |b|^2, not only would you get an estimate at best, but you’d have to repeat whatever computation prepared v for measurement over and over again until you get an estimate you’re satisfied with. In fact, we’ll see situations like this, where we actually have a perfect representation of the data we need to solve our problem, but we just can’t get at it because the measurement process destroys it once we measure.

Before we can talk about those algorithms we need to see how we’re allowed to manipulate qubits. As we said before, we use unitary matrices to preserve unit vectors, so let’s recall those and make everything more precise.

Qubit Mappings are Unitary Matrices

Suppose v = (a,b) \in \mathbb{C}^2 is a qubit. If we are to have any mapping between vector spaces, it had better be a linear map, and the linear maps that send unit vectors to unit vectors are called unitary matrices. An equivalent definition that seems a bit stronger is:

Definition: A linear map \mathbb{C}^2 \to \mathbb{C}^2 is called unitary if it preserves the inner product on \mathbb{C}^2.

Let’s remember the inner product on \mathbb{C}^n is defined by \left \langle v,w \right \rangle = \sum_{i=1}^n v_i \overline{w_i} and has some useful properties.

  • The square norm of a vector is \left \| v \right \|^2 = \left \langle v,v \right \rangle.
  • Swapping the coordinates of the complex inner product conjugates the result: \left \langle v,w \right \rangle = \overline{\left \langle w,v \right \rangle}
  • The complex inner product is a linear map if you fix the second coordinate, and a conjugate-linear map if you fix the first. That is, \left \langle au+v, w \right \rangle = a \left \langle u, w \right \rangle + \left \langle v, w \right \rangle and \left \langle u, aw + v \right \rangle = \overline{a} \left \langle u, w \right \rangle + \left \langle u,v \right \rangle

By the first bullet, it makes sense to require unitary matrices to preserve the inner product instead of just the norm, though the two are equivalent (see the derivation on page 2 of these notes). We can obviously generalize unitary matrices to any complex vector space, and unitary matrices have some nice properties. In particular, if U is a unitary matrix then the important property is that the columns (and rows) of U form an orthonormal basis. As an immediate result, if we take the product U\overline{U}^\text{T}, which is just the matrix of all possible inner products of columns of U, we get the identity matrix. This means that unitary matrices are invertible and their inverse is \overline{U}^\text{T}.

Already we have one interesting philosophical tidbit. Any unitary transformation of a qubit is reversible because all unitary matrices are invertible. Apparently the only non-reversible thing we’ve seen so far is measurement.

Recall that \overline{U}^\text{T} is the conjugate transpose of the matrix, which I’ll often write as U^*. Note that there is a way to define U^* without appealing to matrices: it is a notion called the adjoint, which is that linear map U^* such that \left \langle Uv, w \right \rangle = \left \langle v, U^*w \right \rangle for all v,w. Also recall that “unitary matrix” for complex vector spaces means precisely the same thing as “orthogonal matrix” does for real numbers. The only difference is the inner product being used (indeed, if the complex matrix happens to have real entries, then orthogonal matrix and unitary matrix mean the same thing).

Definition: single qubit gate is a unitary matrix \mathbb{C}^2 \to \mathbb{C}^2.

So enough with the properties and definitions, let’s see some examples. For all of these examples we’ll fix the basis to the computational basis e_0, e_1. One very important, but still very simple example of a single qubit gate is the Hadamard gate. This is the unitary map given by the matrix

\displaystyle \frac{1}{\sqrt{2}}\begin{pmatrix}  1 & 1 \\  1 & -1  \end{pmatrix}

It’s so important because if you apply it to a basis vector, say, e_0 = (1,0), you get a uniform linear combination \frac{1}{\sqrt{2}}(e_1 + e_2). One simple use of this is to allow for unbiased coin flips, and as readers of this blog know unbiased coins can efficiently simulate biased coins. But it has many other uses we’ll touch on as they come.

Just to give another example, the quantum NOT gate, often called a Pauli X gate, is the following matrix

\displaystyle \begin{pmatrix}  0 & 1 \\  1 & 0  \end{pmatrix}

It’s called this because, if we consider e_0 to be the “zero” bit and e_1 to be “one,” then this mapping swaps the two. In general, it takes (a,b) to (b,a).

As the reader can probably imagine by the suggestive comparison with classical operations, quantum circuits can do everything that classical circuits can do. We’ll save the proof for a future post, but if we want to do some kind of “quantum AND” operation, we get an obvious question. How do you perform an operation that involves multiple qubits? The short answer is: you represent a collection of bits by their tensor product, and apply a unitary matrix to that tensor.

We’ll go into more detail on this next time, and in the mean time we suggest checking out this blog’s primer on the tensor product. Until then!

Advertisements

5 thoughts on “The Quantum Bit

  1. > That is, our most atomic unit of data is a vector (a,b) with the constraints that a,b are complex numbers and a^2 + b^2 = 1.

    If a and b are equal to i, your “norm” suddenly becomes negative. The correct formula for distance, as described in the next section, should use conjugates.

    Like

  2. A quantum bit is a unit vector in C^2. That is, a four dimensional unit vector. Now, a computational basis is a pair of orthogonal vectors in C^2, say [0, 1] and [1, 0]. So the computational basis forms a 2D subspace of the 4D space. When you measure a qbit to obtain a vector in the computational basis, this projects the full 4D state down to a 2D value. Is this why most of the information is said to be “destroyed” when the qbit is read?

    Like

    • No, there is no projection here, because all operations are taken over C as well. So it’s a 2 – dimensional complex vector space. You could identify this with a 4-d real vector space, but we don’t and instead work with all complex numbers and operations.

      Like

      • In the article, you say “2. As a side effect, the qubit v instantaneously becomes whatever state was observed in 1. This is often called a collapse of the waveform by physicists”. There may be no “projection” as such.

        Are you saying that when you measure a qubit, you get the information along whatever computational basis you choose, but doing so destroys any information along the other two dimensions? (and if so, does measurement “destroy” that information essentially by taking the non-basis dimensions to 0 and re-normalizing the qubit?)

        Like
